Standard DOS text mode contains 2000 = 80×25 characters on the screen,
while the (extended) ASCII set comprises of only 256 different characters.
Thus, one has to significantly simplify an image to be reconstructed
with such limited typographical resources.
Possible procedure (should be easily rewritten in a batch mode) in GIMP:
load image - try to pick the one of dimensions close to 4:3 ratio
crop and/or desaturate if needed
rescale to 640×400 (72.000 px/in)
rotate pi/2 to get vertical stripes in the next step
Filters → Distorts → Engrave and tune Height parameter
rotate -pi/2 to restore original orientation
File → Export As... → *.data with RGB Save Type → Standard(R, G, B) and
R, G, B (normal)
Instead of engraving, one can use 1-bit palette with appropriate
dithering - no rules, just experiment!
Sanity check: the output must have exactly 768000 = 3×640×400 bytes
and might look like this:
where each consecutive triplet of bytes, eg. FF FF FF,
corresponds to the RGB pattern - here monochromatic.

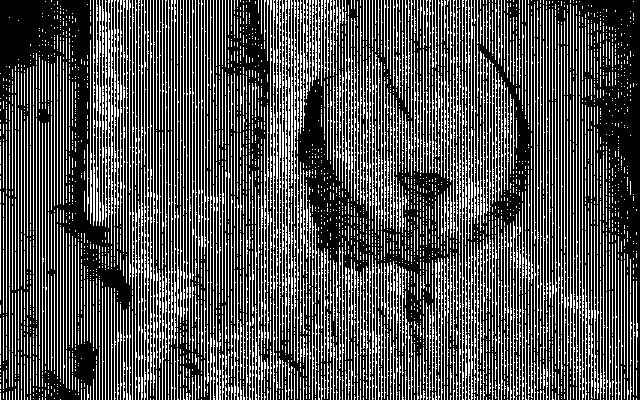

Such sequence, after pixel by pixel RGB decoding onto 640×400 array,
reveals a 1-bit color picture:

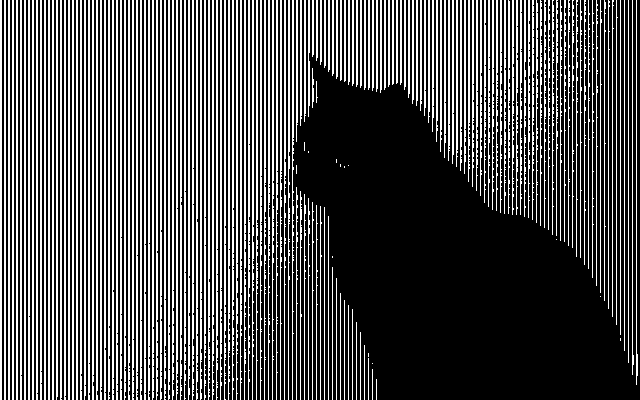

Picture is rotated before engraving because vertical strips
(GIMP's engravings are done only horizontally) fit much better for the final effect when graphics is replaced by text.
Namely, the VGA standard displays characters with a slight
horizonal break between each column. That is why vertical stripes might obscure this nuisance.
Besides, it looks much better than horizontal ones.
Once image is converted into the *.data file,
use the shell C function:
data_reduce24(), the purpose of which is:
converting binary data to text ≡ exchanges 0x00 to ASCII(48) = 0 and 0xFF to ASCII(49) = 1 (to facilitate further operating in the shell),
flattening triplets 000 → 0 and 111 → 1,
converting octets of 0s and 1s treated as binary strings to decimal representation and stores as another binary file.
The size of the last output from the script is 32000 bytes that is 2000×16 numbers.
This is in agreement with the image size 640×400 that corresponds to 2000 subarrays of size 16×8
which are just ASCII matrices.
Actually, the resolution in the text mode reads 720×400 not 640×400. The additional 80 pixels
comes from the method the VGA standard works: after each character an additional 1-pixel-width
line is drawn. With one exception; ASCII table has a sequence of special sixteen characters
between C0h and DFh. When displayed in the text mode, they reproduce their last pixel
column (only set bits) that results with a ninth one that overlays the
background (making the text a sort of continuous, which can produce a nice effect when preparing frames, array, etc.).
This "feature" can be handled by the port 03Ch of VGA, see the
article of
Martin Weisman in PC Mag (1990-01-30).
A simple formula:
80*16*(y - 1) + x + 80*j for j in [0, 15]
can be used to retrieve a byte mask from the reduced array at the (x, y)-position
for x in [1, 80] and y in [1, 25].
Indexing example:
x=1
2
3
...
30
...
80
y=1
□
□
□
...
□
...
80 : 1280
2
□
□
□
...
□
...
□
3
□
□
□
...
□
...
□
4
□
□
3841 : 5043
...
□
...
□
:
:
:
:
...
□
...
:
17
□
□
□
...
□
...
□
:
:
:
:
...
□
...
:
25
□
□
□
...
□
...
30800 : 32000
ASCII.c
The C function
checks whether there is a possibility to reconstruct the image out of 256 different ASCII characters or not,
and creates an assembly data section, eg.
if it is the case.
Actually, the input picture should not be much complicated to be presented using just 256 different characters.

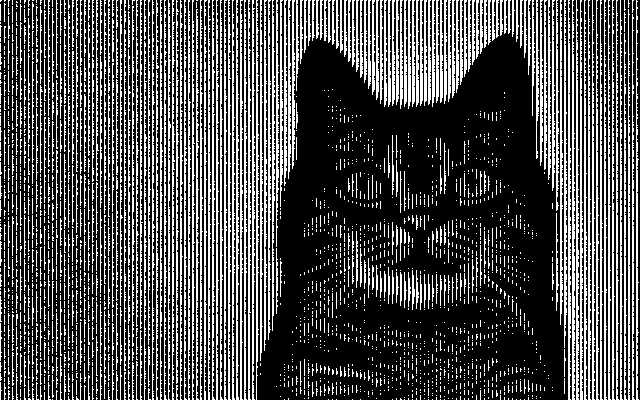

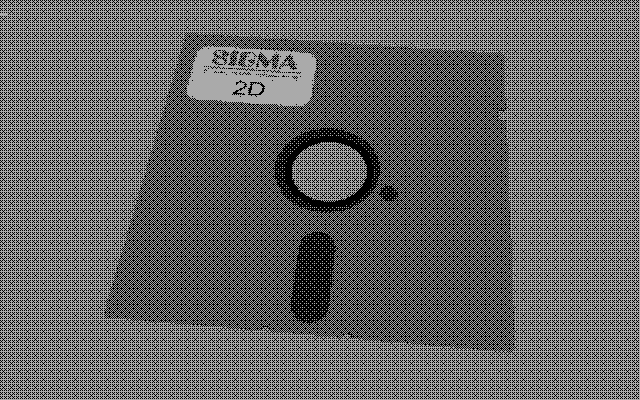

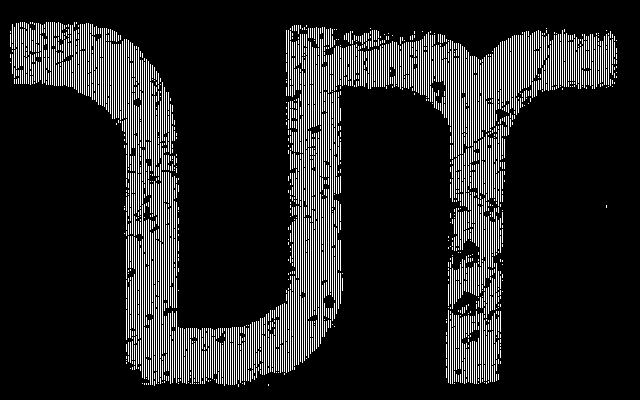

The following text-picture
has been prepared from 250 different ASCII characters (see the cursor in the upper-left...). However,
for most images the procedure of converting to the full ASCII table is rather impossible.
This problem can be solved using different display methods.
The improved procedure reproduces all the above steps with a slight difference
that there is no limitation for ASCII characters.
Every (8×16)-component "line" of the input picture is translated
to a set of 80 ASCII characters. There are 25 such lines in total.
Assembly script redefines a sequence of the first 80 ASCII characters, displays them and
immediately erases. Then it redefines next 80 characters, displays them...
and repeats the procedure for each of 25 lines.

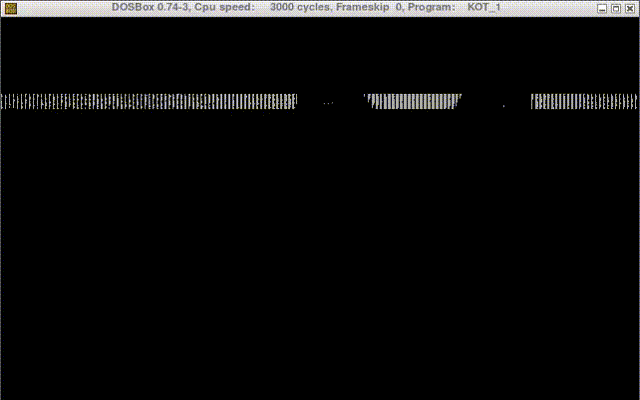

Adjusting the speed of jump between each line, one can observe a smooth effect
of flowing the picture which resembles old CRT monitors being refreshed when

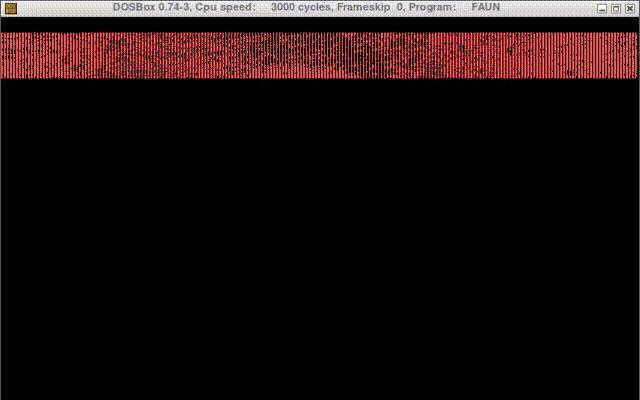

filmed on camera. As a result one gets:
It is enough to increase the number of characters displayed in one turn from 80d to 240d (three lines) to

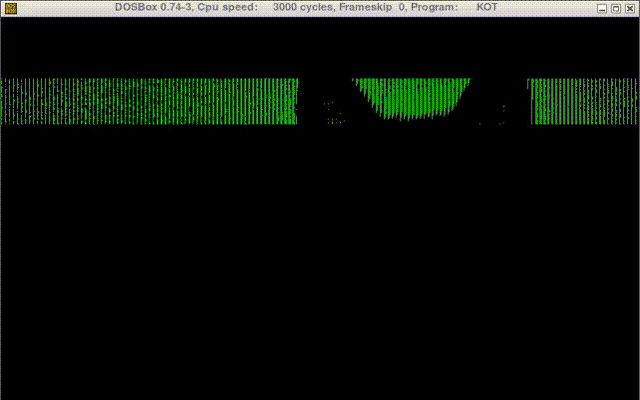

get a much better visual effect:
B2 (animation)
As a side project, this can be used to prepare a simple animation over three lines.

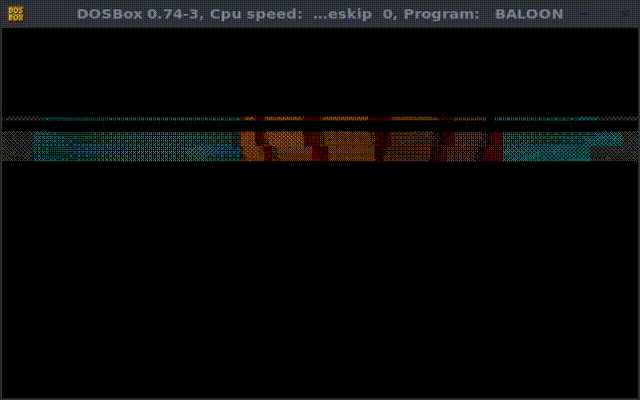

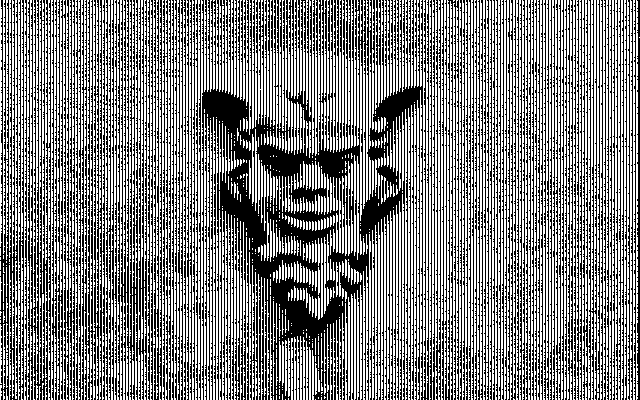

ASCII attributes can be adjusted to reveal a colour of the individual "pixel" ≡ ASCII.
An original image rescaled to 80×25 with 16 colours and exported as *.data
serves a (real) pixel to ASCII-attribute (1-to-1) mapping.
Then, the GIMP procedure remains as as above with the same picture
of original size 640×400 (1-bit-dithering...).
Not every picture fits for this. One must try to pick ones that represent a single well-contrasted object
which is properly distinguished from the uniform background.
$ gcc -Werror -o ASCII ASCII.c
$ ./ASCII ASCII_image_08.data FLOPPY.ASM
--> reduce GIMP RAW DATA file to a binary form... done
--> prepare new ASCII table...................... done
--> it is 250 different ASCII characters to be redefined
----------------------
- OK -
----------------------
...
ASCII.c with too complicated picture
$ ./ASCII ASCII_image_01.data KOT.ASM
--> reduce GIMP RAW DATA file to a binary form... done
--> prepare new ASCII table...................... done
--> it is 1751 different ASCII characters to be redefined
----------------------
- FAIL -
----------------------
$ gcc -Werror -o ASCII_F ASCII_F.c
$ ./ASCII_F ASCII_image_01.data KOT_3.ASM #L
# where #L = 1 or 3 = number of lines to be displayed at once
:
C:/> TASM KOT_3 || TLINK /T KOT_3 || KOT_3.COM
ASCII_FH.c – modification of ASCII_F.c with horizontal scrolling;
uses ASCII_FH.CORE
